Embroidery machine options：

1.Head Distance:300 mm (Customized, 55/82.5/110/125/165/220/240/250/300/330/ 350/ 400, etc.)

2.Embroidery Area:X550Y850mm (Customized, X axis depends on the head distance, single/double/multiple alternate available, Y axis 450/500/680/750/800/900/ 1000/1200/1300/1500/1800 optional or customized )

3.Stitch Length/ Memory Capacity 0.1-12.7mm/1 billio：380V （220/380V） Power Input: 380 V (220/380V optional)

4.Auto head selection: Yes (Customized)

5.Computer: DAHAO A18

6.Main Motor: 2.5KW DAHAO servo motor

7.Frame Motor: X1Y1*1.5KW DAHAO servo motor

8.Frame Drive/Belt: X3Y6 linear drive/original Italy belt(Original and domestic belt optional)

9.Trimming Option: 110 stepping motor trimming

10.Color Change Option: Screw Rod(SR) Color Change(cam color change optional)

11.Upper Thread Holding: new high performance solenoid upper thread holding device

12.Tension Base: new tension base designed by Lejia

13.Head Structure: Double cam double lever structure, press foot and needle bar drive independently (normal head/single cam double lever/double cam double lever optional according to needs)

14.Jump mode: motor controlled(solenoid and motor optional)

15.Rotary Hook:original Koben rotary hook 1.6 times(Koben/Hirose/K branch optional, 1.0/1.6/2.0 times optional)

16.Oiling system: Automatic oiling system()

17.Languages: Chinese, English, Spanish, Turkish, Russian, French, Portuguese, Arabic and Thai

Embroidery Machine Applications：

Mainly used in fashion design, apparel fabrics, upscale wall covering, curtains, screens, water-soluble lace, children's toys, home accessories, arts and crafts and other fields.

Emboidery Machine features：

1.New user friendly 8 inch touch screen control system and upgraded X/Y motion and cutting system improves stitching quality and feasibility, while minimizing electric noise and maintenance.

2.Full closed loop servo motor controlled X/Y driving system, plus Germany made timing belt and jumbo bearing, assures high precision of finest stitching. Latest linear guide rail(central rod)by extra wide base and jumbo bearings make the motion in X/Y lighter and smoother, but less maintenance.

3.Unique innovative “SD” stitching arm with multiple levers and coupling by oiling-free bearing.It largely enhances the life span of driving cam for presser foot, meanwhile reaching maximum ultra high speed of 1350 SPM.

4.New designed tension base brings more smooth feeding, but less shaking of thread;thus, stitching is flat and shiny with minimum thread breakage, even on tough metallic thread.

5.New chassis applies super strong steel and sold welding techniques. Secured precision and strength minimize the vibration and thread breakage.

6.Extra strong aluminum made pantograph makes no distortion by fabric stretching force. No harm to fabric by new clamping structure.

7.Precise motor controlled jumping mode is faster, quieter, more steady, and much less maintenance

8.New designed upper thread holding system keeps thread on working status after frequent cutting and increases the productivity largely.

9.New closed loop SR(screw rod)color change system is faster, more precise and steady than ever. More efficiency, but less maintenance.

10.New closed loop powerful motor cutting system is more precise, steady, and suitable for frequent cutting, even all day and night.

11.Optional controllable oiling system(timer type is available)guarantees lubrication on parts on head and hook, and safeguards the life of parts, minimizing the down time of maintenance.

12.Optional additional features and devices such as boring, sequin, twin sequin,easy cording, lock stitch chenille, beads, laser cutting and thermal cutting make the embroidery more beautiful and add the value of the embroidery greatly.

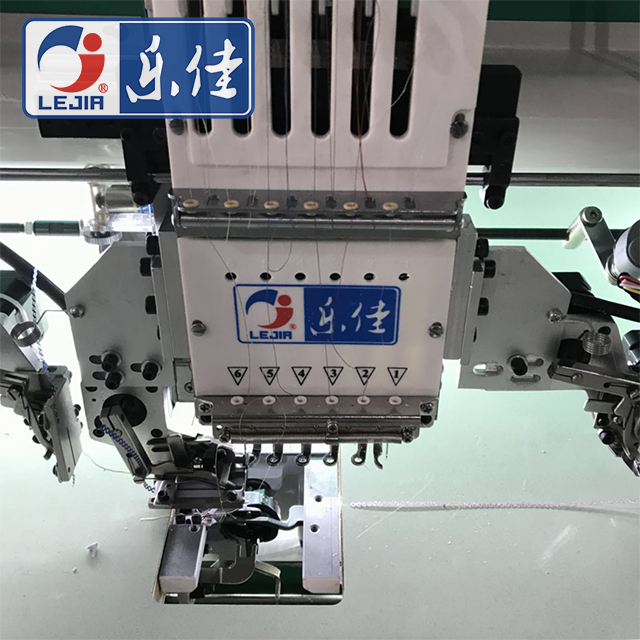

1.Sequin embroidery： (single side sequin, double side sequin, single side overlapped sequin and double side overlapped sequin with sequin size from 2mm-22mm).

Easy sewing of all shapes of sequin, like round, heart, square, water drop, diamond, oval, etc. Even on eccentric holed sequin to achieve magic hanging effect.

2.beads embroidery： By excellent combination of beads device and controller system, it works with loose glass beads of 2/2.5mm for embroidery instead of manual embroidery with beads with improvement of work efficiency and it also makes the artistic features of beads embroidery that is more brilliant, colorful and stereoscopic.

3.Easy Cording embroidery： With simple structure but remarkable embroidery is the main characteristic of easy cording device. It is just assembled on flat head and makes cording embroidery easily with much lower cost，Steady running of cording works by cord, rope, and sequin / bead string up to 1000 SPM speed.

4.Lock Stitch Looping embroidery： Lock stitch looping uses lock stitches embroidery without any falling off of thread. And meanwhile, it has the characteristic of chain stitch looping embroidery with strong sense of three-D. Compared with the high cost for chain stitch looping, lock stitch looping has much lower cost, and it also offers various kinds of beautiful embroidery.

4.Thick Thread embroidery：By adjustment of clearance for needle bar and rotary hook, it can work with maximum 900D yarn thread, which gives better sense of 3D embroidery.

5.Boring embroidery：It embroiders on holes edge after the holes are made by boring knives or needles which installed on flat head. In this way, it has both decent normal embroidery flowers but also delicate hollowed-out flowers that make embroidery more elegant, exquisite and unique.

6.Thermal Cutting Device embroidery machinery：It’s easy to use for any synthetic fabric or artificial leather (P.U). With precise cutting, it works synchronously with embroidery under intelligent controlling system, and makes gorgeous embroidery.

7.LASER CUTTING SYSTEM embroidery machinery：Hybrid of embroidery and compact laser cutting and engraving largely reduces down time of post embroidery processing and adds unlimited value and charm to the products.

Designed for engraving, layer cutting, boring, patch/applique embroidery on wide range of fabric, leather, mesh, toy, textile.For SME’s embroidery + cutting/engraving. More compact, fast installation, flexible operation, cost saving, and higher earnings.

8.Lubrication system (automatic lubrication, manual lubrication and spraying lubrication,Optional controllable oiling system (timer type is available ) guarantees lubrication on parts on head and hook , and safeguards the life of parts , minimizing the down time of maintenance.

9.Automatic Bobbin Changing Device： Bobbin changing is one of the necessary processes of embroidery. Automatic bobbin changing can be finished during embroidering for all the heads which avoids the stop of machines due to the bobbin changing.

10.Emergency Stop：When something urgent or unexpected happens, emergency switch can stop the machine quickly.

11.High Speed Upper Thread Holding：By controlling picking up of the solenoid from upper thread holding device, it makes holding and loosening of thread which greatly improves the quality of embroidery and trimming, it keeps thread on working status after frequent cutting and increases the productivity largely.

12.Dahao Operation Panel for Embroidery Machine：

Founded in 2002 and located in Zhuji Huandong Industrial Zone，Zhejiang Province, China, Zhejiang Lejia Electrical Machinery Co., Ltd is a Key High-tech Enterprise of National Torch Plan, Zhejiang High-tech Enterprise and Zhuji Industrial Scale Enterprise.

Lejia keeps its own way of innovation and has individually designed, developed and manufactured series of embroidery machines of flat (high speed), double sides, sequins, chenille & chain stitch, taping & cording, tuft and mixed functions etc.

It’s one of the leading enterprise in Embroidery machine industry in China. It covers more than 50,000 square meters, and has more than 200 employees, including 20 senior engineers.

We have a professional embroidery machine manufacturing team which is responsible for R&D,spare parts producing, machine body making and complete machine assembling.

Lejia company has been approved by ISO9001 Quality system, ISO14001 Environmental Management System and CE certificate.
